The video below shows key features of the Data Processing module in our Phased Array Software for wind tunnel testing and general applications. AVEC also offers phased array software for acoustic flight tests. Please download the corresponding brochures below or contact us for the latest information and features.

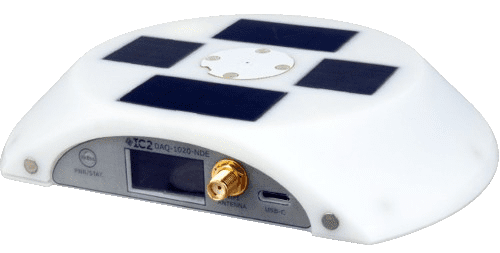

Phased Array Software for Acoustic Flight Tests

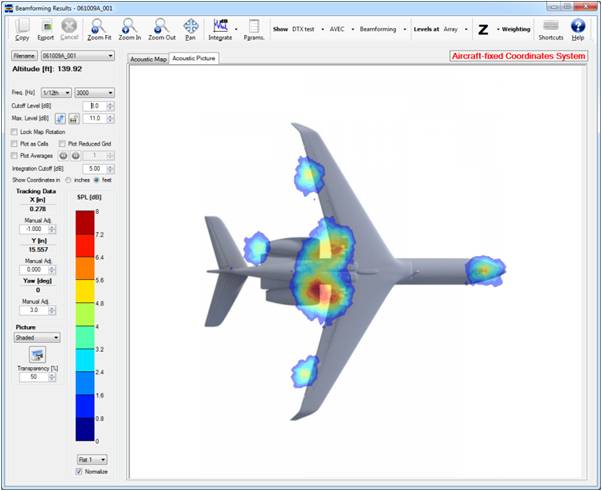

AVEC has developed a state-of-the-art phased array software for flight tests. Features include several options for aircraft tracking (GPS, line cameras, manual triggers), data pre-processing module to check all microphones signals simultaneously, deconvolution, directivity calculations, EPNL estimation, and automatic report generation (including word processor, slides, JPEG and HTML formats), among other features.

The software can also be customized to meet any customer needs. Please click the button below to download a brochure or contact us now.

Phased Array Software for Wind Tunnels and General Applications

AVEC has developed a high-end phased array processing software that is the perfect complement to AVEC's array system or your current array. This new version includes several new features and improvements, including the capability to perform beamforming with flow for aeroacoustic testing.

The software is divided in three main modules:

Array design: in this module you will have access to a powerful tool to help you design your own array. The array response, signal-to-noise ratio and resolution as a function of frequency are available to you in just a few seconds. This module is a perfect tool for learning or teaching the basics of phased array.

Array simulation: this feature will let you simulate different sources to help you understand how arrays work or simply to see what you would expect in your experimental testing.

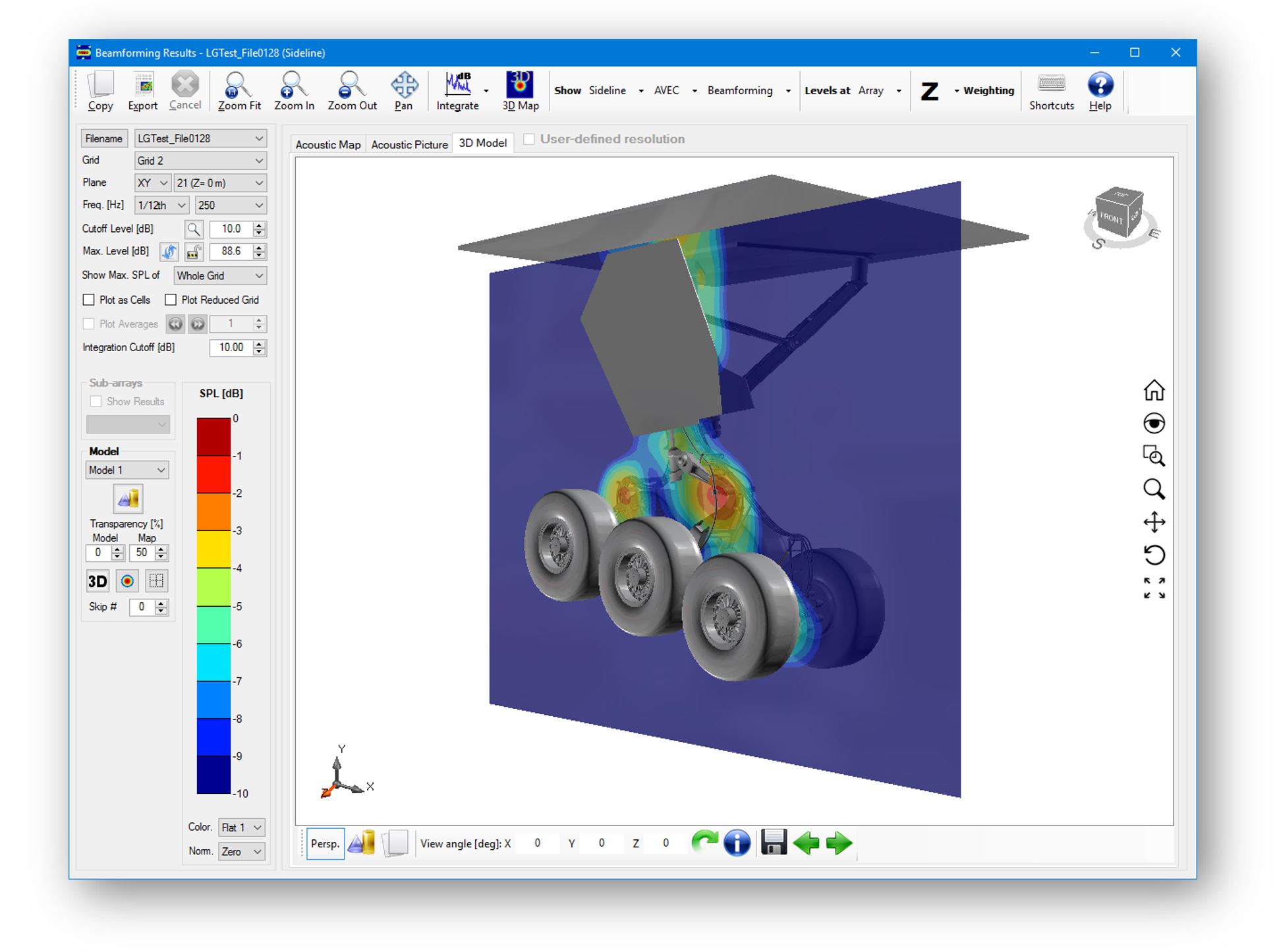

Data processing and analysis: this module is the core of the AVEC software. Its ease of use and unmatched processing speed will increase your productivity while providing you with high quality results. Such results can be analyzed as conventional phased array results using contour plots or our photo interface that will show the results overlaid to a picture of the system being studied. Among its many features, its unique automatic report generation will give you professional looking results in no time, giving you more time to focus on analyzing data.

A draft brochure for the upcoming version of our software can be download using the button below. If you require further information please do not hesitate to contact us.

We also offer our phased array capabilities as a consulting service. For more information please visit our services page.

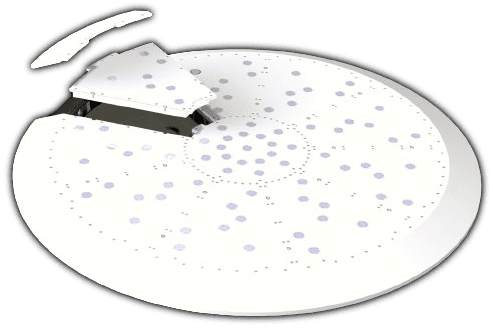

Microphone Phased Array Hardware

AVEC, Inc. has developed phased array systems that eliminate the high cost usually associated with multiple sensor measurements without sacrificing the quality of the results. The systems are easy to assemble and operate and can be fully customized to fit your specific needs.

The turn-key system includes all the components to get you from measurement to reports in no time. With the full system, you receive: microphones, supporting structure, cables, signal conditioning, anti-aliasing filters, data acquisition system, a PC workstation and processing/analysis/reporting software.

Besides the standard 63-element system, AVEC’s modular design offers the capability of fitting your specific needs with regard to the size of the array and/or the number of channels. Our team of experts will make sure that all your requirements are satisfied.

Click the button below to download the full brochure or contact us for more information.

We also offer our phased array capabilities as a consulting service. For more information please visit our services page.

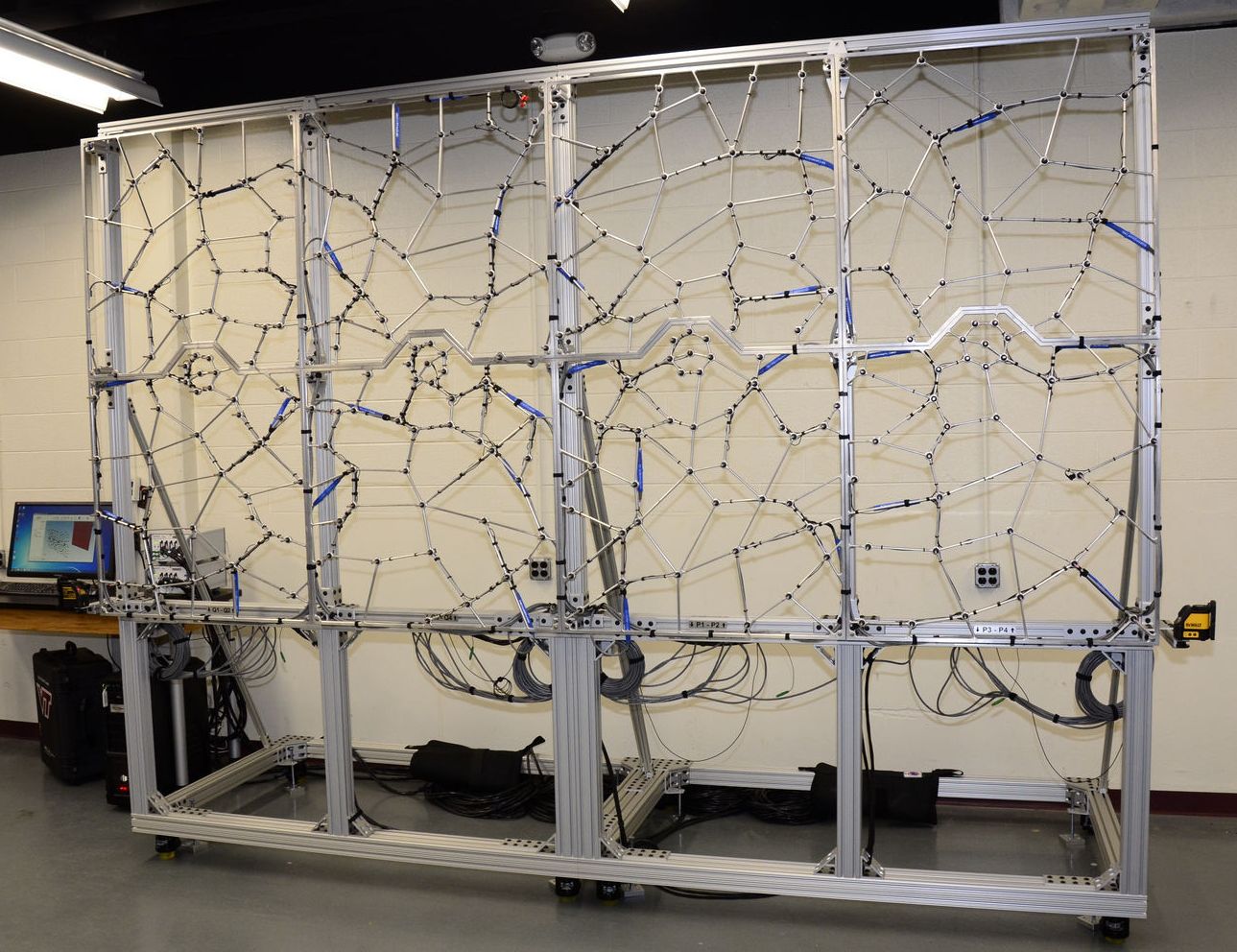

251-element Phased Array custom-built for the VT Anechoic Wind Tunnel .

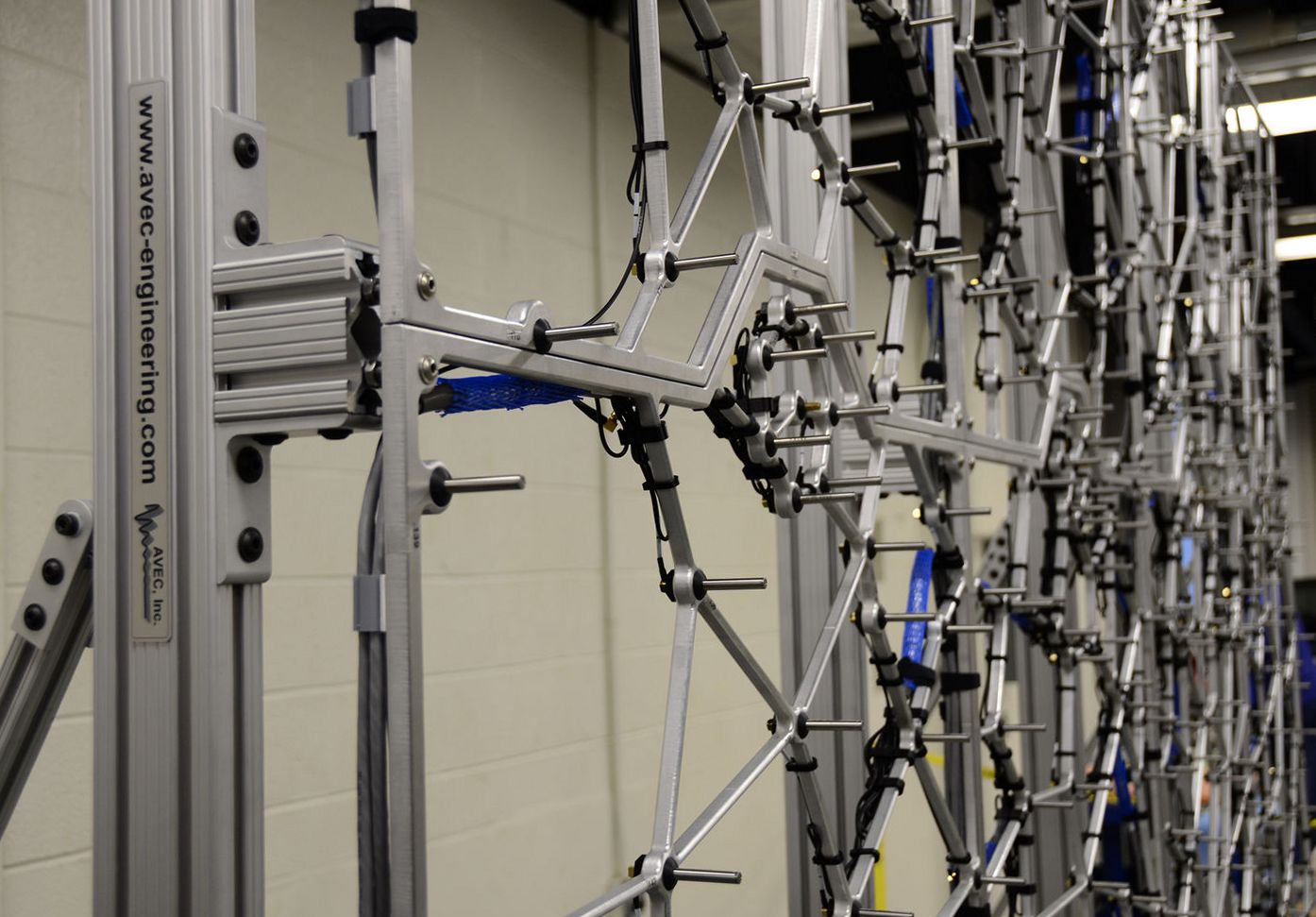

A closer view of the 251-element Phased Array and the GRAS microphones

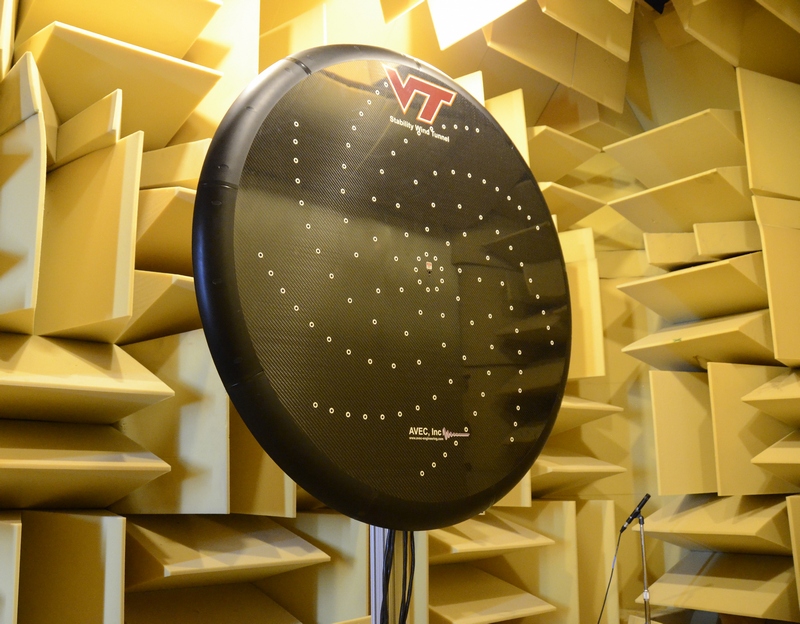

117-element Phased Array installed in the VT anechoic wind tunnel

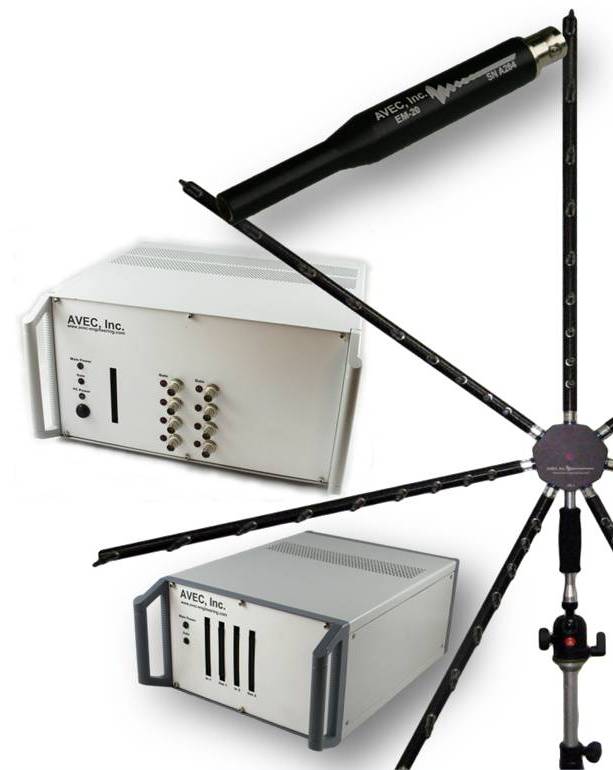

63-element Star Phased Array, All-In-One system (top), and IEPE signal conditioning option (bottom)
